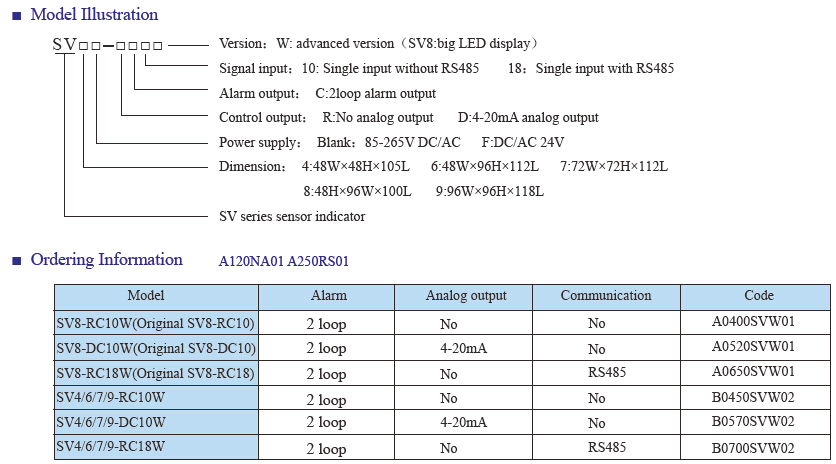

Model: SV-W Series Sensor Indicator
Sensor indicator is mainly to achieve industrial remote transfer, measuring and control of the analog outputs of pressure sensor, temperature sensor,weighing sensor,etc.The main use is in physical quantity display and status monitoring, etc.
TC,RTD,Standard work analog signal input,selected by software.
2 loop settable relay alarm output.
Isolated analog 4-20mA output.
Supply 24V/12VDC,max 30mA isolated auxiliary power,or±12V/60mA common ground power.
With RS485 communication interface.
Accuracy:±0.5%FS
TC,RTD,Standard work analog signal input,selected by software.
2 loop settable relay alarm output.
Isolated analog 4-20mA output.
Supply 24V/12VDC,max 30mA isolated auxiliary power,or±12V/60mA common ground power.
With RS485 communication interface.
Accuracy:±0.5%FS
